Product Selective configuration

This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

Product Characteristics

Every control module of the automatic color register system is equipped with micro-processor and can correct the deviation of color register quickly and accurately .

Each printing unit is driven by servo motor.

Double station for unwind and rewind,non-stop material splicing.

The unwind and rewind units are equipped with variable frequency drives and a closed-loop tension control system.

The unwind/rewind traction is driven by servo motors, integrated with a closed-loop tension control system.

Closed oven and independent heating hot air blowing system,automatic constant temperature system .

Pneumatic impressing system and pneumatic doctor blade system.

Diaphragm-type pneumatic ink auto circulating system.

Air shaft for unwinding/rewinding material loading .

Printing linear speed and meter counting display.

Non-shaft for loading material.

Equipped with ink transfer roller.

Equipped with heat energy saving system.

Product Sample

Technical Parameter

Model	AZJ-8850E	AZJ-81050E	AZJ-81250E
Max. Width of Web	850mm	1050mm	1250mm
Mechanical Max. Speed	520m/min	520m/min	520m/min
Max. Printing Speed	500m/min	500m/min	500m/min
Max. Unwind-Rewind Diameter	Φ800mm	Φ800mm	Φ800mm
Internal Diameter of Roll Core of Substrate	Φ76mm	Φ76mm	Φ76mm
Diameter of Printing Cylinder	Φ120-300mm	Φ120-300mm	Φ120-300mm
Register Accuracy	±0.05mm	±0.05mm	±0.05mm
Tension Range	3-40kg	3-40kg	3-40kg
Heating Power of Drying Oven	300kw	305kw	310kw
Total Power	410kw	420kw	430kw
Weight	About 45000kg	About 47000kg	About 49000kg
Overall Dimension (LWH)	1830043003400mm	1830045003400mm	1830047003400mm

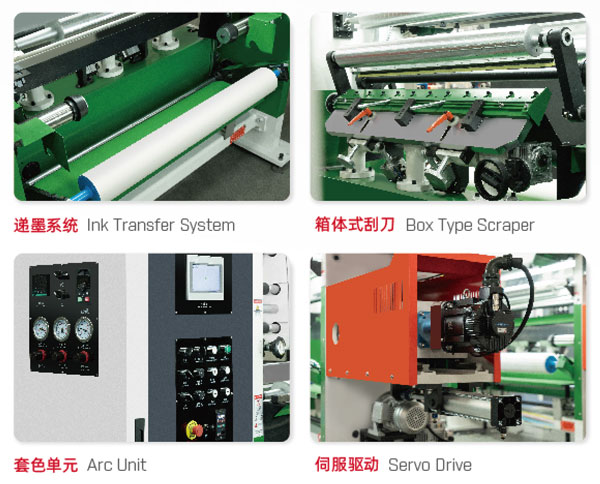

Detail Drawing

Flow Diagram
