Product Selective configuration

This machine is suitable for multi-color once-through continuous printing for such roll film materials with excellent printing performance as BOPP, PET, PVC, PE, aluminum foil and paper, etc.

Product Characteristics

Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately，double arc

Main motor with inverter speed control.

Double arms and double station for rewind/rewind, non-stop material splicing.

Unwinding and in-feed section with inverter speed control system and close loop tension control system.

Rewinding and out-feed section with inverter speed control system and close loop tension control system.

Closed oven and independent heating hot air blowing system, automatic constant temperature system.

Pneumatic impressing system and pneumatic doctor blade system.

Diaphragm-type pneumatic ink auto circulating system

Inflatable air shaft for unwinding / rewinding material loading

Printing linear speed and meter counting display

Shaft less printing cylinder loading device, printing cylinder is fixed by shaft-less air chuck.

Equipped with ink distributing roller to transfer ink.

Product Sample

Technical Parameter

Model	AZJ-8850D	AZJ-81050D	AZJ-81250D
Max. Width of Web	850mm	1050mm	1250mm
Mechanical Max. Speed	420m/min	420m/min	420m/min
Max. Printing Speed	400m/min	400m/min	400m/min
Max. Unwind-Rewind Diameter	Φ800mm	Φ800mm	Φ800mm
Internal Diameter of Roll Core of Substrate	Φ76mm	Φ76mm	Φ76mm
Diameter of Printing Cylinder	Φ105-300mm	Φ105-300m	Φ105-300mm
Register Accuracy	±0.1mm	±0.1mm	±0.1mm
Tension Range	3-25kg	3-25kg	3-25kg
Heating Power of Drying Oven	184kw	200kw	220kw
Total Power	260kw	280kw	300kw
Weight	About 40000kg	About 42000kg	About 44000kg
Overall Dimension (L*W*H)	18300*3700*3400mm	18300*3900*3400mm	18300*4100*3400mm

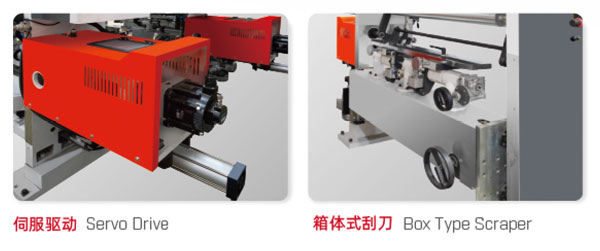

Detail Drawing

Flow Diagram
